RCR 80V Advanced Controls: Cruise Control, Reverse, Walk Mode & Thrill/Cruise

RCR 80V Advanced Controls: Cruise Control, Reverse, Walk Mode & Thrill/Cruise

This guide covers how to use the Cruise Control, Reverse, Walk Mode, and Dual Sport Thrill/Cruise functions on the RCR 80V.

Cruise Control

Cruise Control allows the bike to maintain your current riding speed without continuously holding the throttle.

Activating Cruise Control

  1. Accelerate to your desired speed.

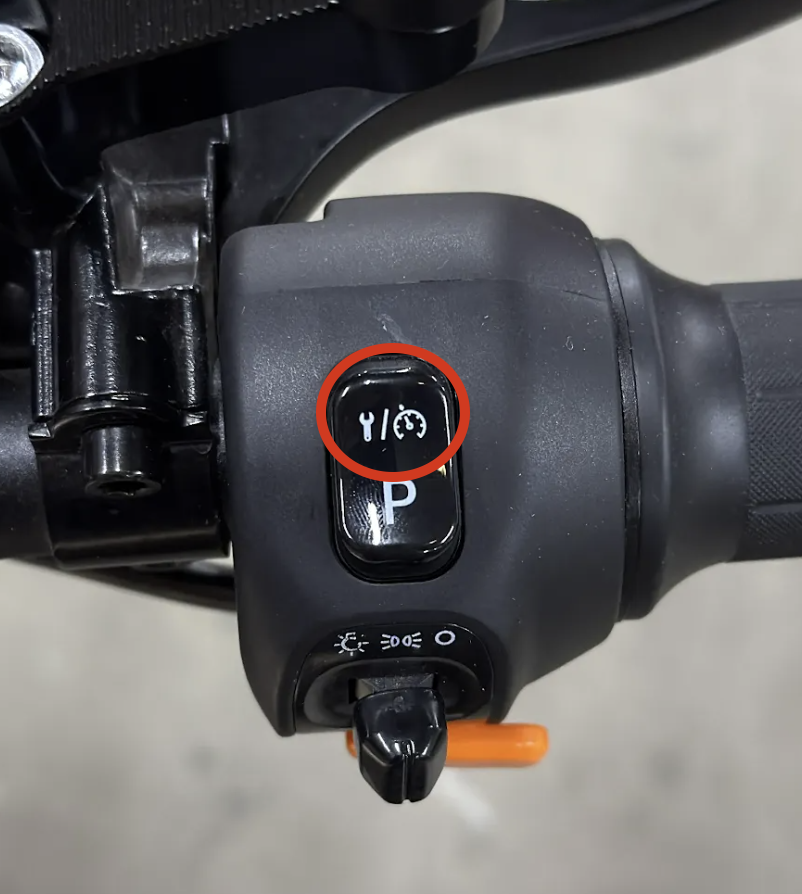

  2. Press and hold the speedometer button located directly above the Park (P) switch.
  3. Cruise Control will engage and maintain your selected speed.

Disengaging Cruise Control

Cruise Control can be disengaged by:

  • Tapping the rear brake
  • Twisting the throttle

Once disengaged, normal throttle control will resume.

Reverse

Reverse allows the motor to provide controlled power in the reverse direction.

Activating Reverse

  1. Make sure the bike is currently in a drive mode.

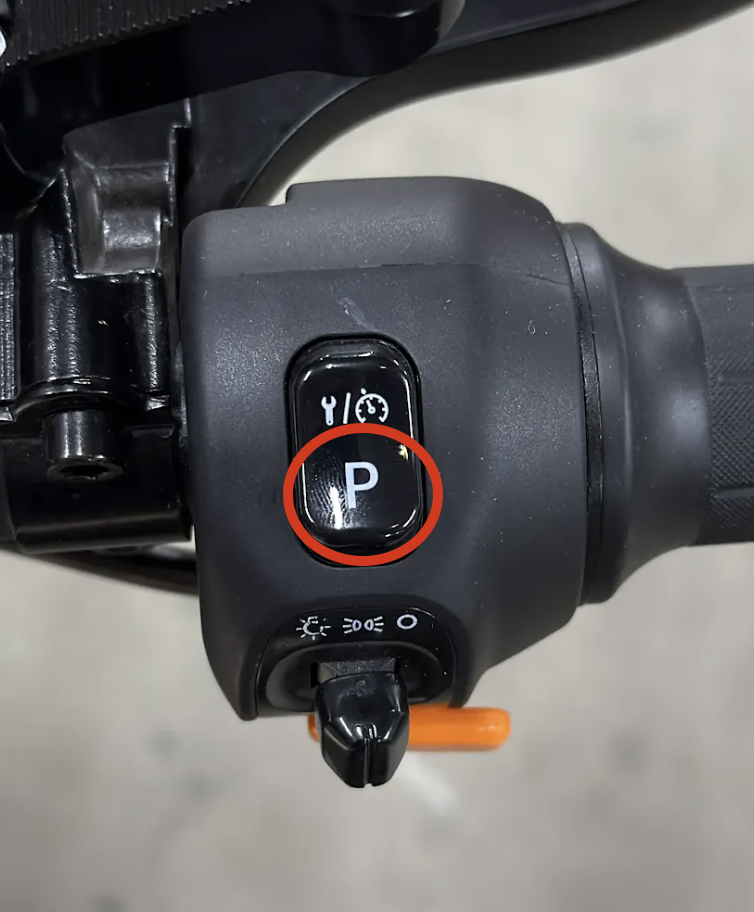

  2. Press and hold the Park (P) switch.

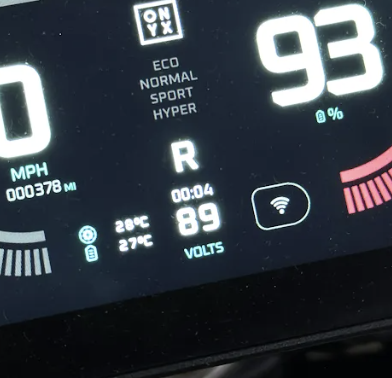

  3. The displayed drive mode will change to R, indicating Reverse.
  4. Continue holding the Park (P) switch and slowly apply throttle.
  5. The motor will provide power in reverse.

Exiting Reverse

Release the Park (P) switch to disengage Reverse.

Important: Apply throttle slowly and maintain control of the bike while reversing.

Walk Mode

Walk Mode provides a minimal amount of motor power to help move the bike without using the throttle.

Activating Walk Mode

  1. Make sure the bike is currently in a drive mode.

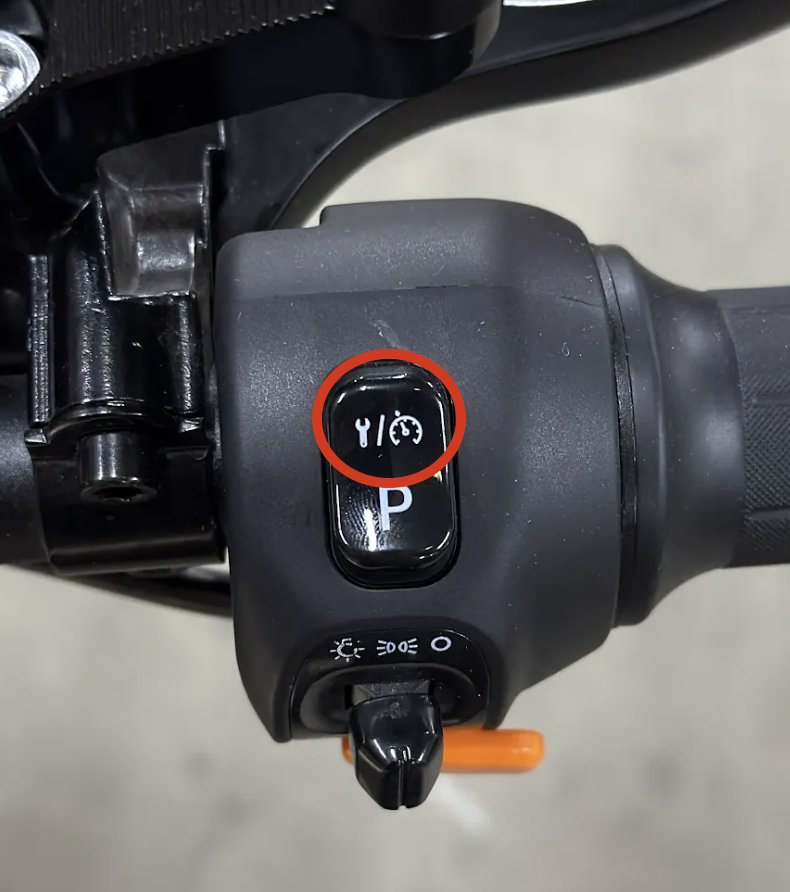

  2. Press and hold the wrench button.
  3. The bike will switch to Eco and begin applying minimal motor power without the throttle being engaged.

Release the wrench button when Walk Mode is no longer needed.

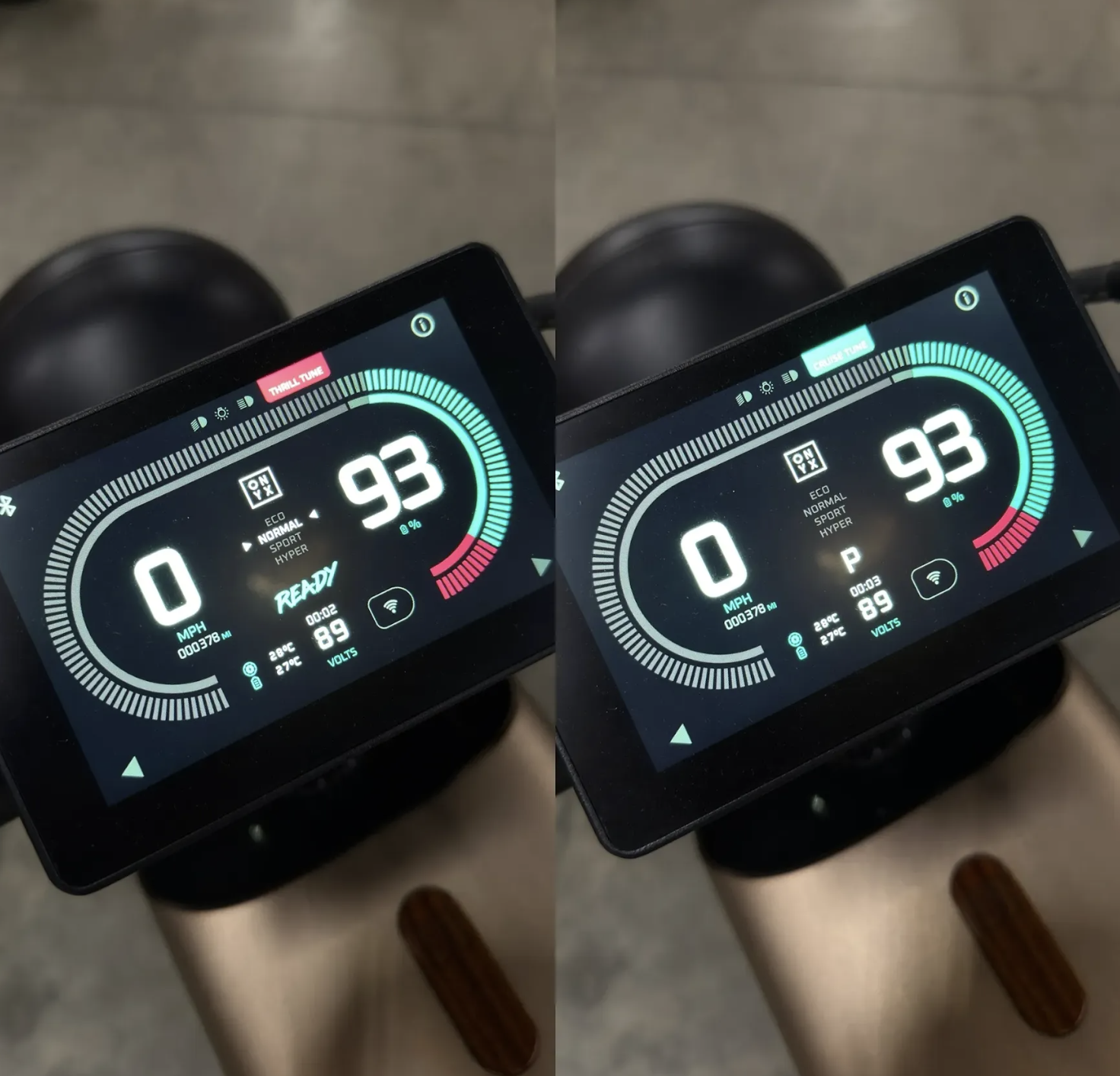

Dual Sport Thrill/Cruise Modes

RCR 80V Dual Sport models equipped with Thrill/Cruise functionality can toggle between the two configurations using the wrench button on the throttle assembly.


Switching Between Thrill & Cruise

  1. Place the bike in Park (P).

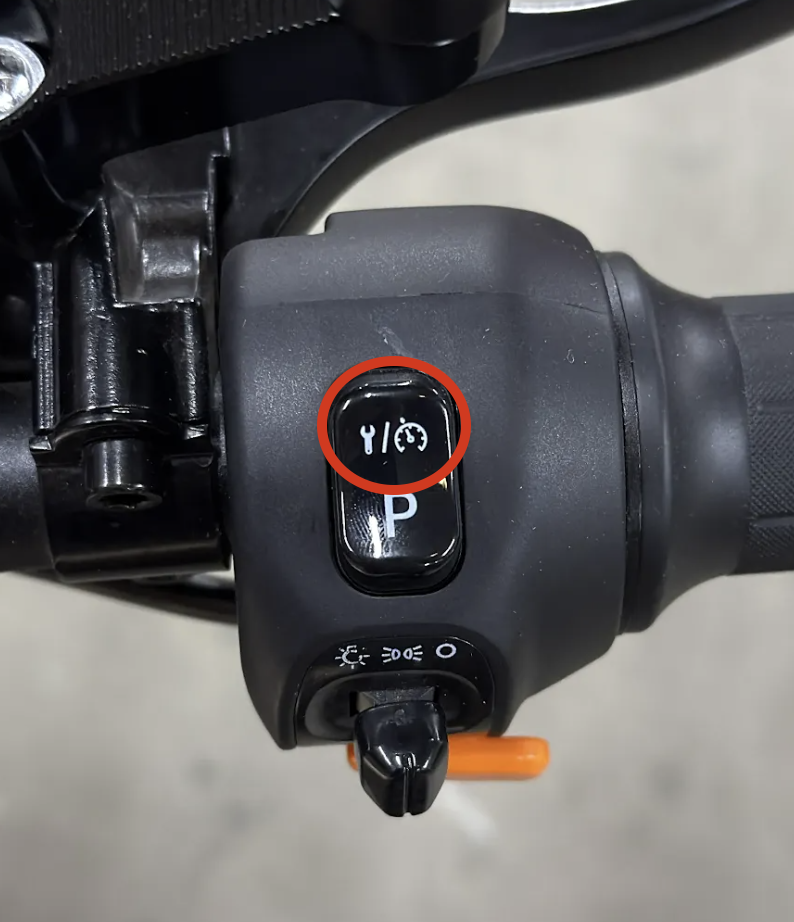

  2. Press and hold the wrench button on the throttle assembly for 3 seconds.
  3. The bike will toggle between Thrill and Cruise modes.

The bike must be in Park when switching between Thrill and Cruise.



Quick Reference

FunctionControlHow to Activate
Cruise ControlSpeedometer buttonAt desired speed, press and hold
ReversePark (P) switch + throttleIn drive mode, hold P and slowly apply throttle
Walk ModeWrench buttonIn drive mode, press and hold
Thrill/CruiseWrench buttonIn Park, hold for 3 seconds

Final Notes

  • Familiarize yourself with each control before using it in traffic or around obstacles.
  • Use Reverse and Walk Mode at low speeds and with control of the bike.
  • Thrill/Cruise switching is performed while the bike is in Park.
  • Cruise Control can be immediately disengaged using either brake or by moving the throttle.
